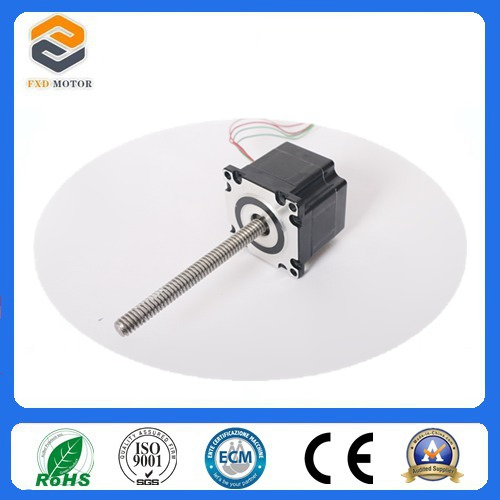

China NEMA16 Inverter Motor for Rail with CE Certification

Product Description

Model:FXD 39 H 2 28 -046 -18	General Info
A B C D E F G	Step angle accuracy	±5%
Note: A Fuxianda	Temperature rise	80K Max
B Motor dia or square size	Ambient temperature	20ºC-+50ºC
C Hybrid stepper motor	Insulation resistance	100M Min.500VDC
D Phase number	Dielectric strenght	700VAC.3mA,1 minute
E Motor length	IP Class	IP40
F Phase current multiply by 100	Insulation Class	Class B
G Step angle multiply by 10

Model Specification

Model	Step Angle	Motor Length	Rated Current	Phase Resistance	Phase Inductance	Holding Torque	Lead Wire (No.)	Motor Weight
	(°)	(mm)	(A)	(Ω) ±10% @25ºC	(mH)	(N.cm Min)		(g)
FXD39H228-046-18	1.8	28	0.46	20	15	12	4	120
FXD39H228-080-18	1.8	28	0.8	5.5	7.0	12	4	120
FXD39H234-042-18	1.8	34	0.42	25	40	18	4	160
FXD39H234-080-18	1.8	34	0.8	6.5	12	18	4	160

Applications:
The stepper motor manufactured by us has wide range of application like robots, electronic automatic equipment, medical instrument, advertisement instrument, lighting& audio equipment, printer, textile machinery, CNC router etc.

Note: If you have some different specifications, we can product stepper motor as your special requirements.
