Micro NEMA 17 Hybrid Servo Stepper Motor with High Torque for Pancake
I.CH Motion Micro Hybrid Stepper Servo Motor HS421General Specifications: Speed:0-3000RPMInsulation Resistance:100MIN,500VDCAmbient Temperature:0-55ºC Encoder lines:2500/1000Drawing:Electrical Specification: Series ModelRated Voltage (V)L(mm)Phase Current (A)PhaseResistance(Ω)P......
Send Inquiry
Product Description
I.CH Motion Micro Hybrid Stepper Servo Motor HS421
General Specifications:
Drawing:

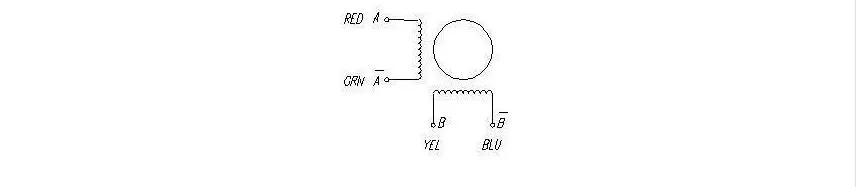

Electrical Specification:
Accessory:
Custom Shaft
Leadwires and Cables
Connector
About Us:
we specialized in researching, developing and servicing electric motors, gearbox and high precision gears with small modules. After years of development, we have an independent product design and R&D team, service team and professional quality control team.
What's more, we have two joint ventures. One is located in Changzhou, which produces hybrid stepper motor, precious linear stepper motor, brushless DC motor, servo motor, stepper motor driver, brushless motor driver, encoder and brake. Another one is located in Shenzhen, which produces DC gear motor. The factory has dozens of CNC machines and high precision test equipment, implements the process management and automatic operation in most producing process.
Work Flow:
Package:
Related Products:
Notice:
If you want to customize products, please contact us.
General Specifications:
| Speed: | 0-3000RPM |
| Insulation Resistance: | 100MIN,500VDC |
| Ambient Temperature: | 0-55ºC |
| Encoder lines: | 2500/1000 |

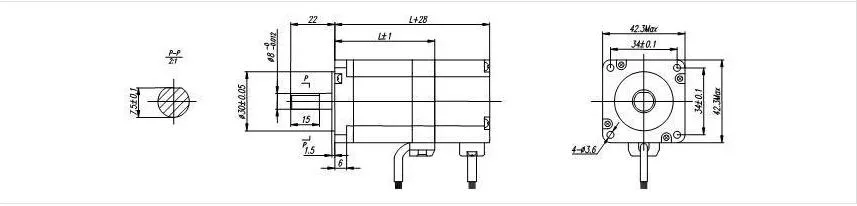

Drawing:
Electrical Specification:
| Series Model | Rated Voltage (V) | L (mm) | Phase Current (A) | Phase Resistance (Ω) | Phase Inductance(mH) | Holding Torque (N.cm) | Moment of Inertia (g.cm2) | Motor Weight ( g) |
| HS421-05013A | 4.16 | 51 | 1.3 | 3.2 | 5.5 | 50 | 77 | 530 |
| HS421-05023A | 2.3 | 51 | 2.3 | 1.0 | 1.9 | 50 | 77 | 530 |
| HS421-05613A | 4.94 | 67 | 1.3 | 3.8 | 8.5 | 56 | 115 | 670 |
| HS421-07023A | 3.22 | 67 | 2.3 | 1.4 | 3.1 | 70 | 115 | 670 |
Accessory:

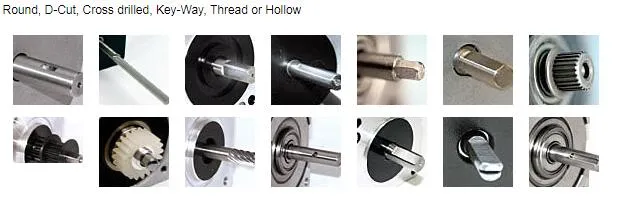

Custom Shaft

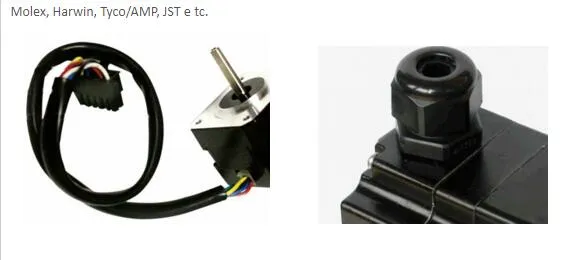

Leadwires and Cables
Connector
About Us:
we specialized in researching, developing and servicing electric motors, gearbox and high precision gears with small modules. After years of development, we have an independent product design and R&D team, service team and professional quality control team.
What's more, we have two joint ventures. One is located in Changzhou, which produces hybrid stepper motor, precious linear stepper motor, brushless DC motor, servo motor, stepper motor driver, brushless motor driver, encoder and brake. Another one is located in Shenzhen, which produces DC gear motor. The factory has dozens of CNC machines and high precision test equipment, implements the process management and automatic operation in most producing process.
Work Flow:
Package:

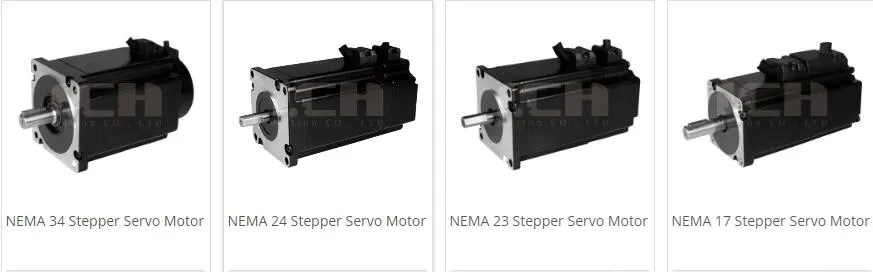

Related Products:
Notice:
If you want to customize products, please contact us.
