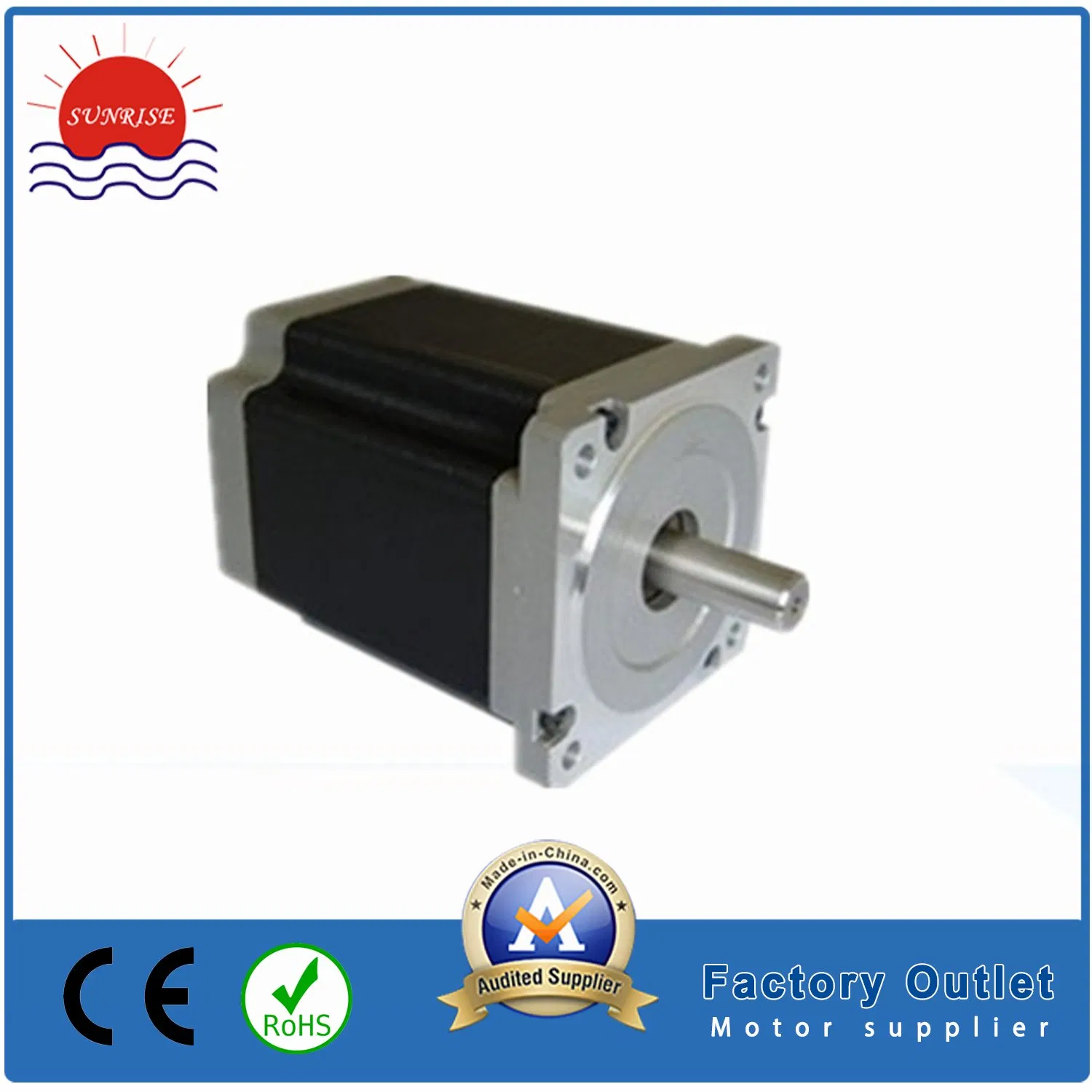

86hs2a126 2.7A 640n. Cm NEMA34 1.8deg. Stepper Motor for Engraving Machine
2-Phase Hybrid Stepping Motor1.8° NEMA34Model: 86HS2A126-278Holding torque: 640N. CmCurrent: 2.7AResistance: 2.5ohmsInductance: 12.5mHLength: 126mmWire: 8Weight&co......
Send Inquiry
Product Description
2-Phase Hybrid Stepping Motor
1.8° NEMA34
Model: 86HS2A126-278
Holding torque: 640N. Cm
Current: 2.7A
Resistance: 2.5ohms
Inductance: 12.5mH
Length: 126mm
Wire: 8
Weight: 3.8kg
Remark:
We can produce motor according to customer's requirements.
1.8° NEMA34
Model: 86HS2A126-278
Holding torque: 640N. Cm
Current: 2.7A
Resistance: 2.5ohms
Inductance: 12.5mH
Length: 126mm
Wire: 8
Weight: 3.8kg
Remark:
We can produce motor according to customer's requirements.
| Model | Holding Torque (N@cm±10%) | Current/Phase (A) | Resistance/Phase (ohms±10%) | Inductance/Phase (mH±20%) | Detent Torque (N@cm) | Rotor Inertia (Kg-cm 2 ) | Length (mm) | Weight (kg) |
| 86HS2A66-408 | 220 | 4.0 | 0.6 | 1.6 | 5.5 | 0.85 | 66 | 2.0 |
| 86HS2A66-508 | 220 | 5.0 | 0.4 | 1.0 | 5.5 | 0.85 | 66 | 2.0 |
| 86HS2A66-278 | 220 | 2.7 | 1.2 | 3.5 | 5.5 | 0.85 | 66 | 2.0 |
| 86HS2A78-408 | 300 | 4.0 | 0.7 | 3.0 | 6.5 | 1.05 | 78 | 2.5 |
| 86HS2A78-508 | 300 | 5.0 | 0.5 | 1.8 | 6.5 | 1.05 | 78 | 2.5 |
| 86HS2A78-278 | 300 | 2.7 | 1.6 | 5.6 | 6.5 | 1.05 | 78 | 2.5 |
| 86HS2A98-408 | 490 | 4.0 | 0.98 | 4.1 | 9.5 | 1.55 | 98 | 3.0 |
| 86HS2A98-508 | 490 | 5.0 | 0.65 | 2.4 | 9.5 | 1.55 | 98 | 3.0 |
| 86HS2A98-278 | 490 | 2.7 | 1.9 | 8.6 | 9.5 | 1.55 | 98 | 3.0 |
| 86HS2A114-408 | 580 | 4.0 | 1.1 | 5.5 | 12.5 | 1.8 | 114 | 3.5 |
| 86HS2A114-508 | 580 | 5.0 | 0.75 | 3.2 | 12.5 | 1.8 | 114 | 3.5 |
| 86HS2A114-278 | 580 | 2.7 | 2.0 | 11.5 | 12.5 | 1.8 | 114 | 3.5 |
| 86HS2A126-408 | 640 | 4.0 | 1.3 | 5.8 | 18.5 | 2.2 | 126 | 3.8 |
| 86HS2A126-508 | 640 | 5.0 | 0.85 | 3.4 | 18.5 | 2.2 | 126 | 3.8 |
| 86HS2A126-278 | 640 | 2.7 | 2.5 | 12.5 | 18.5 | 2.2 | 126 | 3.8 |
| 86HS2A150-408 | 850 | 4.0 | 1.4 | 9.2 | 24.5 | 2.5 | 150 | 4.2 |
| 86HS2A150-508 | 850 | 5.0 | 0.9 | 5.2 | 24.5 | 2.5 | 150 | 4.2 |
| 86HS2A150-278 | 850 | 2.7 | 2.9 | 17.5 | 24.5 | 2.5 | 150 | 4.2 |
