Product Description

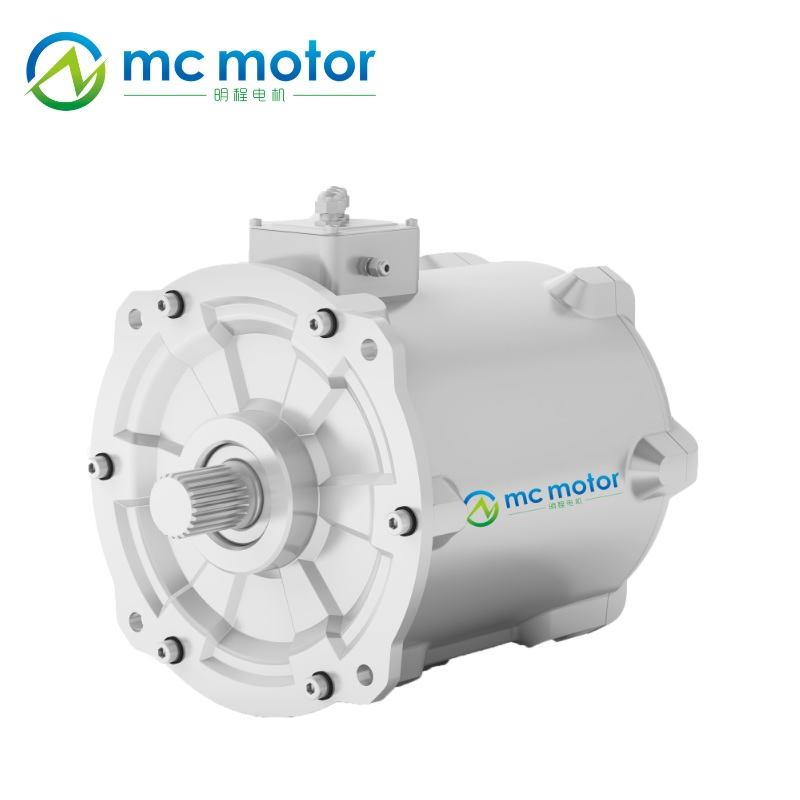

IP67 High Ingress Protection Level Permanent Magnet DC Motor

Product Feature

1.Permanent Magnet Motor with high speed rpm

2.Motor Speed: 7500rpm

3.High power & high torque

4.High efficiency, high cost performance

5.Small size

6.Low noise low vibration

7.Patented cooling structure

8.Easy maintenance, installation and commissioning

9.For both water / oil cooling options

Specifications
Model type: TZ205X15A
Voltage:115V DC
Rated power:15KW
Rated torque:40N.m
Peak power:30KW
Peak torque:110N.m
Maximum speed:7500rpm
Peak current:290A
Maximum efficiency:>=95.5
Insulation:H
Ingress protection:IP67
Weight:21kg
Power density:1.42KW/kg
Cooling method:Natural cooling
Position signal:Resolver (optional)
IP67 High Ingress Protection Level Permanent Magnet DC Motor

Other motors you will be interested in

Motor type	Voltage (V DC)	Rated power (kW)	Rated torque (N.m)	Peak power (kW)	Peak torque (N.m)	Maximum speed (rpm)	Peak current (A)	Maximum efficiency (%)	Insulation	Ingress protection	Weight (kg)	Power density (kW/kg)	Cooling Method	Position Signal
TZ205X15A	115	15	40	30	110	7500	290	≥95.5	H	IP67	21	1.42	Natural cooling	Resolver
TZ205X20A	115	20	50	40	140	7500	370	≥95.5	H	IP67	28	1.43	Natural cooling	Resolver
TZ205XS50A	380	50	110	100	250	10000	370	≥96.5	H	IP67	42	2.38	Water circulation	Resolver
TZ205XS50B	380	50	126	120	382	10000	400	≥96.5	H	IP67	49	2.45	Water circulation	Resolver
TZ205XS50C	330	50	130	120	312	12000	400	≥96.5	H	IP67	49	2.45	Water circulation	Resolver
TZ340XS60A	340	60	573	120	1146	3500	380	≥96	H	IP67	180	0.67	Water circulation	Resolver
TZ340XS90A	430	90	866	180	1732	3500	450	≥96	H	IP67	270	0.66	Water circulation	Resolver
