43mm DC Brushless Motor with 0.078nm 3000rpm (ME043AS300-1)
General information4 poles with three phases120/60 degree hall effectSeal ball bearingNeodymium magnetAluminum housingInsulation class B, higher insulation class on requestIP 55 availableSpecificationsSpecificationME043AS300Supply voltage(reference)24( VDC)Rated continuous torque0.078 (Nm)Rated spee......
Send Inquiry
Product Description
General information
Characteristic diagram
- 4 poles with three phases
- 120/60 degree hall effect
- Seal ball bearing
- Neodymium magnet
- Aluminum housing
- Insulation class B, higher insulation class on request
- IP 55 available
| Specification | ME043AS300 |
| Supply voltage(reference) | 24( VDC) |
| Rated continuous torque | 0.078 (Nm) |
| Rated speed at cont.torque | 3000 (rpm) |
| Rated continuous stall current | 1.65 (A) |
| Rated continuous output power | 25 (W) |
| Rated peak torque | 0.26 (Nm) |
| Rated peak current | 7.21 (A) |
| Torque constant | 0.0532 (Nm/A) |
| Ke(Voltage constant) | 5.57 (V/krpm) |
| Terminal resistance | 3.34 (Ω) |
| Inductance | 1.13 (mH) |
| Insulation class | B |
| Rotor inertia | 5.89E-04 (Kg.m²) |
| Weight | 0.35 (Kg) |
| L | 66.4 (mm) |

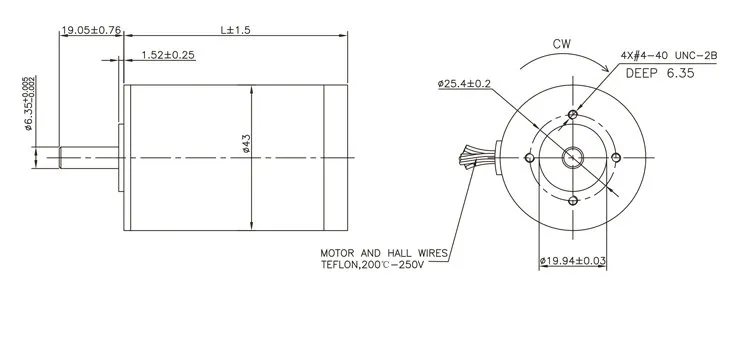

Mechanical

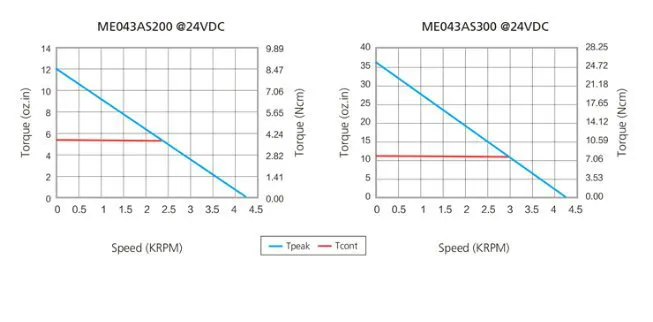

Characteristic diagram
