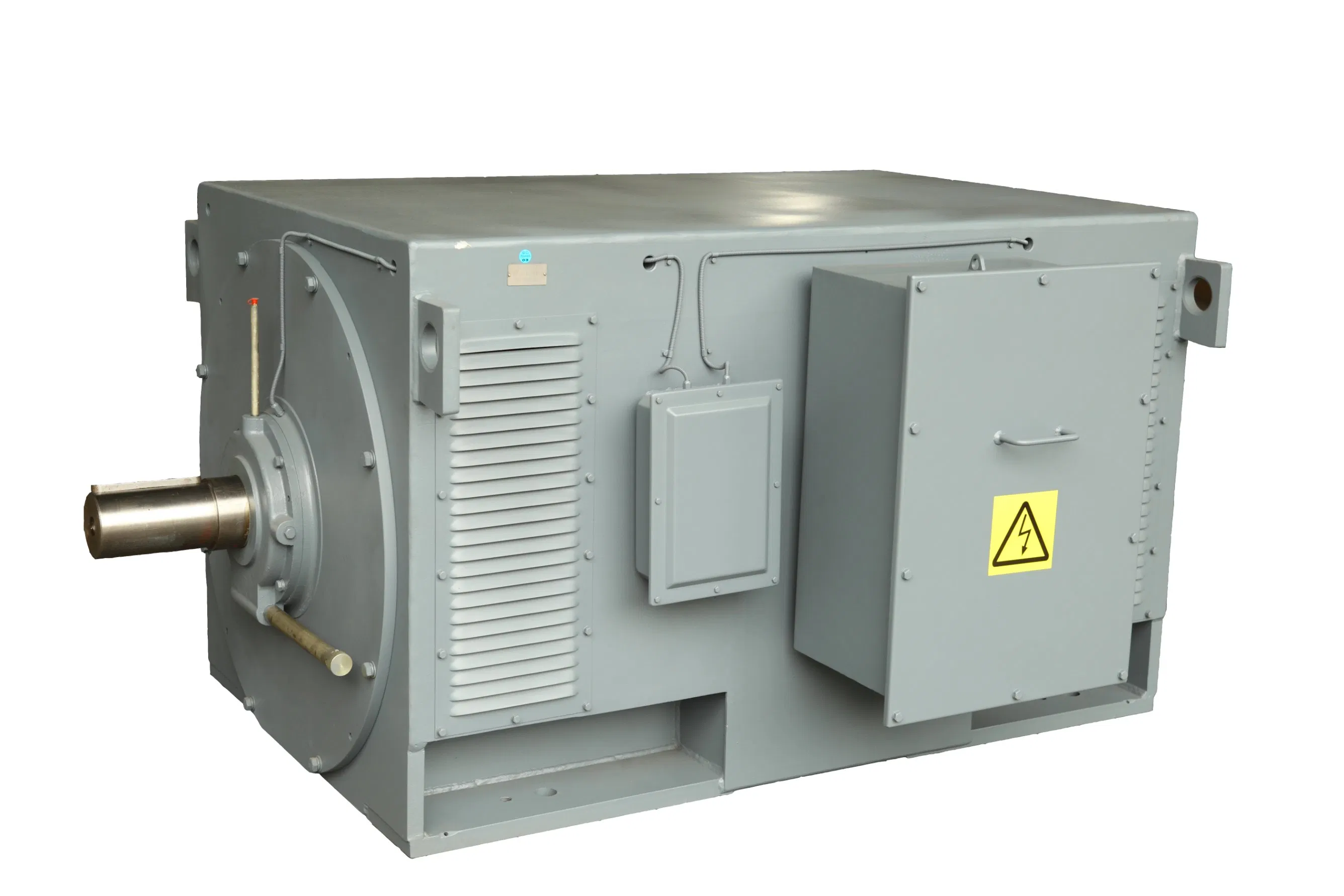

HDP Series ODP Motor
ELECTRICAL DESIGN
• Insulation Class F (temperature rise class B of 80k)
• Environment: altitude 1000m above sea level; ambient temperature -15°C ~ 40°C
• Voltage & Frequency: 6kV 50Hz & 10kV 50Hz
• Frame sizes: H355-H800
• Power range: 185kW-6300kW
• Pole: 2, 4, 6, 8, 10, 12, 16
• Service factor (SF): 1.0
• Design: N
• Duty: S1
MECHANICAL DESIGN
• Fabricated frame
• Copper bar rotor
• Protection: IP23
• Cooling Method: IC01
• Mounting: B3R
• Ball bearing
• Standard configuration: non-stop re-greasing
• Shaft material: 45#
• Anti-condensation drain plug at frame bottom.
• 2 winding RTD per phase; 1 RTD per bearing
• Space heater, single phase, 220V
• Auxiliary terminal box at same side of main terminal box
• Rotation: C.W seen from DE
• Coupling connection
• Stainless steel nameplate
• Paint color: RAL 5008
OPTIONALS
• SPM pipe, insulated bearing, cable gland size, mounting method, bearing & winding PT1000
• SF1.10 (Class F), TH-WF2
• 3.3kV, 4.16kV, 6.6kV, 4.16kV
SPECIAL DESIGN
• Non-standard volts/frequency, special ambient temperature and altitude, special starting requirement, low noise
• Special shaft extension (subject to existing tooling), special mounting dimensions, forced ventilations, T-box position
• Neutral point terminal box, CT
NOTE:
(1) Above data are typical values and for reference only.
(2) Performance tolerance is according to IEC 60034-1.
(3) Please check with REGAL(Wuxi) when ordering 60Hz motor.
ALL DATA ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
ELECTRICAL DESIGN
• Insulation Class F (temperature rise class B of 80k)
• Environment: altitude 1000m above sea level; ambient temperature -15°C ~ 40°C
• Voltage & Frequency: 6kV 50Hz & 10kV 50Hz
• Frame sizes: H355-H800
• Power range: 185kW-6300kW
• Pole: 2, 4, 6, 8, 10, 12, 16
• Service factor (SF): 1.0
• Design: N
• Duty: S1
MECHANICAL DESIGN
• Fabricated frame
• Copper bar rotor
• Protection: IP23
• Cooling Method: IC01
• Mounting: B3R
• Ball bearing
• Standard configuration: non-stop re-greasing
• Shaft material: 45#
• Anti-condensation drain plug at frame bottom.
• 2 winding RTD per phase; 1 RTD per bearing
• Space heater, single phase, 220V
• Auxiliary terminal box at same side of main terminal box
• Rotation: C.W seen from DE
• Coupling connection
• Stainless steel nameplate
• Paint color: RAL 5008
OPTIONALS
• SPM pipe, insulated bearing, cable gland size, mounting method, bearing & winding PT1000
• SF1.10 (Class F), TH-WF2
• 3.3kV, 4.16kV, 6.6kV, 4.16kV
SPECIAL DESIGN
• Non-standard volts/frequency, special ambient temperature and altitude, special starting requirement, low noise
• Special shaft extension (subject to existing tooling), special mounting dimensions, forced ventilations, T-box position
• Neutral point terminal box, CT
NOTE:
(1) Above data are typical values and for reference only.
(2) Performance tolerance is according to IEC 60034-1.
(3) Please check with REGAL(Wuxi) when ordering 60Hz motor.
ALL DATA ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
